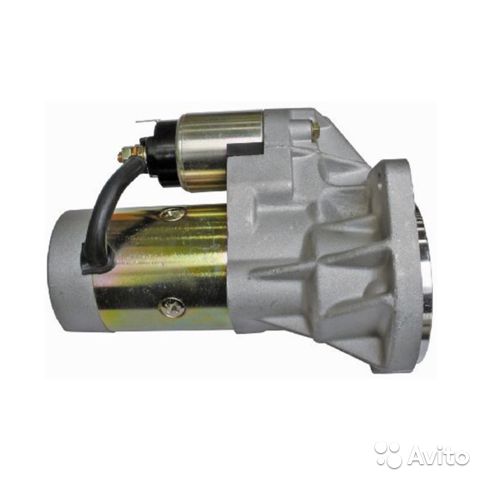

STILL 12832221801 STARTER

Starter type reduction starter Type of head P Voltage (V) 12 Power (kW) 2.3 Neck diameter D1 (mm) 94.5 Pinion diameter D2 (mm) 35.5 Number of teeth 9 Direction of rotation of the pinion CW Overall length of the starter L (mm) 228 Distance between pinion and flange L2 (mm) 20.5 Number of holes 2 Position of fixation holes 35-05-00 Distances between fixation holes 120 Diameter mounting holes D3 (mm) 13 Oil sealed NO
